Service exchange part

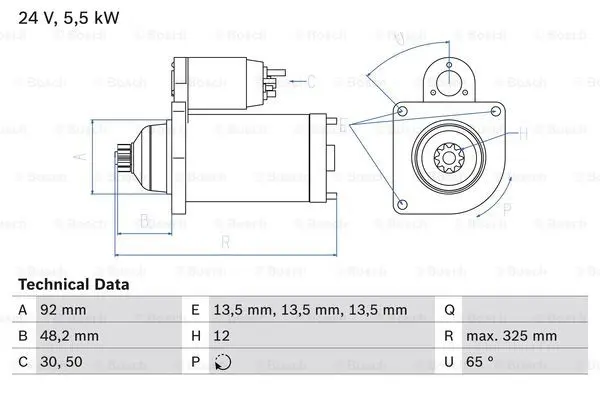

Rated Voltage [V] 24 V
Rated Power [kW] 5,5 kW
Number of mounting bores 3
Number of Thread Bores 0
Number of Teeth 12
Clamp 50
30
Flange Ø [mm] 92 mm
Rotation Direction Clockwise rotation
Pinion Rest Position [mm] 48,2 mm
Starter Type Floating pinion
Bore Ø [mm] 13,5 mm
Bore Ø 2 [mm] 13,5 mm
Bore Ø 3 [mm] 13,5 mm
Length [mm] 325 mm
Position / Degree links °
Connecting Angle [Degree] 65 °
Fastening hole angle measurement [Degree] 65 °
