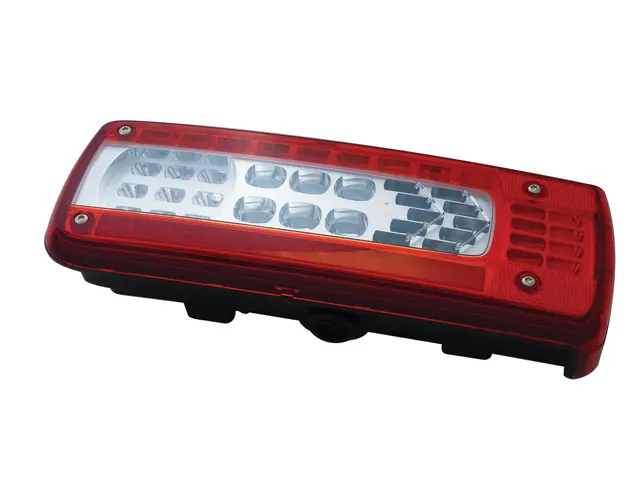

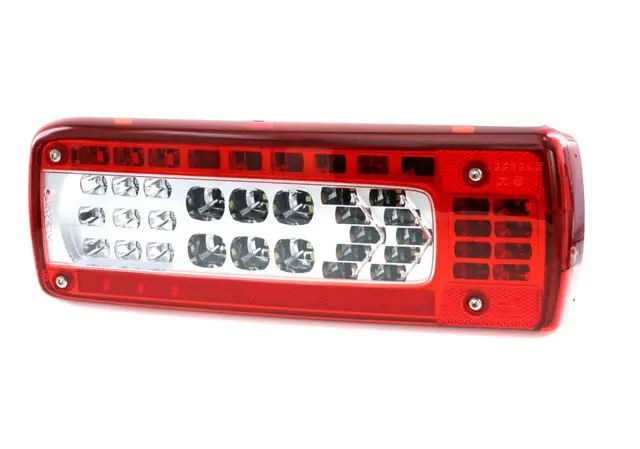

LC10 LED - Rear lamp LED Right with alarm and AMP 1.5 - 7 pin side conn

Brand  Vignal
Product Type  Complete lamp
Voltage  24V
Source  LED
Side  Right

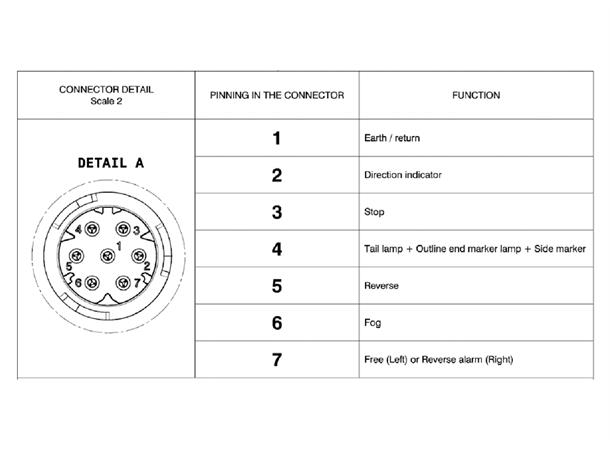

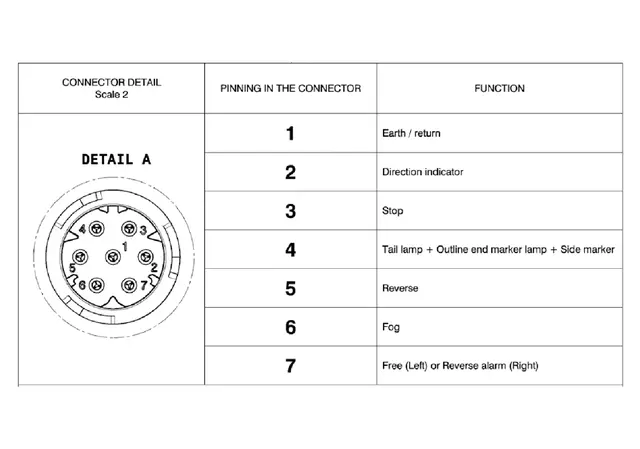

Connector  AMP 1.5 - 7 pin side connector

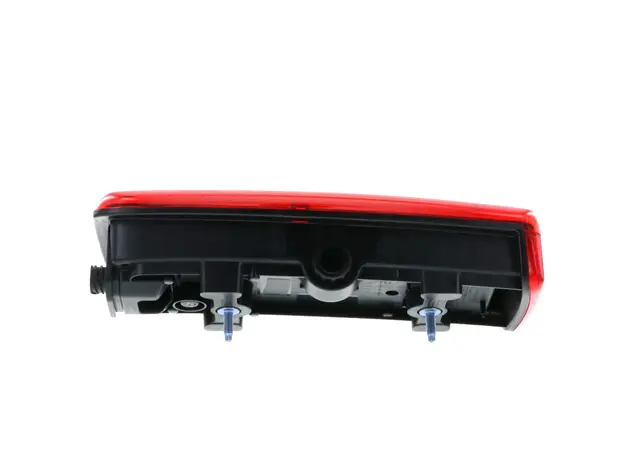

Fixation Bolt Distance  160 mm
Mounting Direction  Horizontal
Lens Material  Polycarbonate
Main Functions  Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector
Specific Functions  Back up alarm
Shape  Rectangle
Length  357 mm
Width  130 mm
Depth  86 mm
EMC  E2 10R-036854
ADR  ADR
ECE  E2 12164
